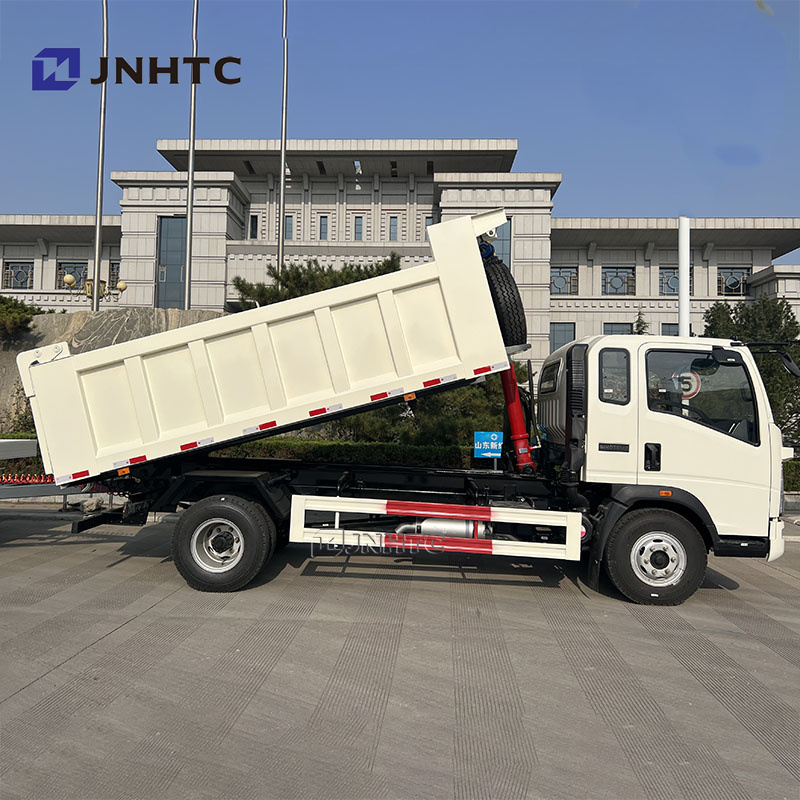

HOWO 4x2 Dumper Tipper Truck
A dump truck is a special type of vehicle that can transport materials over short distances with a tipping hopper. There is a "bucket" shaped container installed on the vehicle body that can be flipped for easy unloading. At present, common dump trucks consist of a hopper and a walking underframe. The hopper is installed in the front of the tire walking chassis and tilts and unloads the material using the gravity or hydraulic cylinder thrust of the material inside the hopper. Due to the fact that tipping and unloading are mainly driven by hydraulic cylinders, the tilting angle of the hopper is limited, and it cannot be flexibly adjusted within a certain angle range based on the actual loading situation, which cannot ensure that the material is completely dumped, thereby affecting work efficiency.
According to clients' requirements, we can customize different loading capacity and volume.
| Overall Dimension | 6050×2320×2750mm |
| Gross Vehicle Weight | 4290 kg |
| Curb weight | 2600 kg |
| Loading capacity | 8000-10000 kg |
| Front axle loading capacity | 1x2800 kg |
| Rear axle loading capacity | 1x6500 kg |
| Max Driving Speed | 95km/h |
| Engine | YN4102QBZL(YUNNEI) |
| Engine horsepower | 116 HP |
| Emission Standard | Euro II |
| Displacement | 3.76L |
| Transmission | WLY10H46 / 5 forword&1 reverse |
| Fuel Tank | 120L |
| Cabin | 1880,with air conditioner, one sleeper. |
| Tire | 8.25R16LT Tire , 6 pieces with one spare |
| Brake | Service brake: dual circuit compressed air brake
Parking brake: spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake |
| Dump Body Size | Size: 3850x 2200 x 800mm,
Q345/B High Tension Steel Dump Body,
Steel Thickness: bottom 4mm, side & front 3mm, |
| Tipping hydraulics | Middle Tipping, Complete set of Chinese Famous Brand Hydraulics System |
A small dump truck, comprising a frame, a battery, a walking steering mechanism, a hopper, a tipping drive
mechanism, and a seat. The end of the hopper far from the seat is rotatably connected to the frame, characterized
in that the tipping drive mechanism is composed of a first motor and a first electric motor The reducer connected
to the machine and the gear transmission structure arranged between the reducer and the hopper are composed;
The gear transmission structure is installed by The support shafts that can rotate inside the frame are fixed on the
first gear and second gear that mesh with the output shaft of the reducer and the support shaft, respectively Gear,
the third and fourth gears symmetrically arranged on the support shaft, and meshing with the third and fourth gears
respectively The first arc-shaped gear rack combined with the second arc-shaped gear rack is composed; A rotatable
connecting shaft is installed on the bottom surface of the hopper, and The upper ends of the first arc-shaped gear
rack and the second arc-shaped gear rack are fixed on the connecting shaft; The dump truck also includes two
arc-shaped teeth The compression structure on the inner side of the strip.
Q. What is your payment terms ?
A: 30% TT before produce and 70% TT before shipment . or 100% LC at sight ( irrevocable ).
Q. How long time you could delivery goods to customer ?
A : Generally 25 days of working , after we receive your deposits .
Q:How you can ensure you have deliveried goods to customers ?
A: We will give you the complete shipping information details for you to confirm.
Q. How you could supply customers after sales services ?
A: We will reply you at first time and help you resolve the problems within 24 hours . If it really need us to your local , we will send your professional person to your local to help you resolve problems without any hesitation , supply you all-around after-sales services including machine maintenance and operation and technical training services etc.
