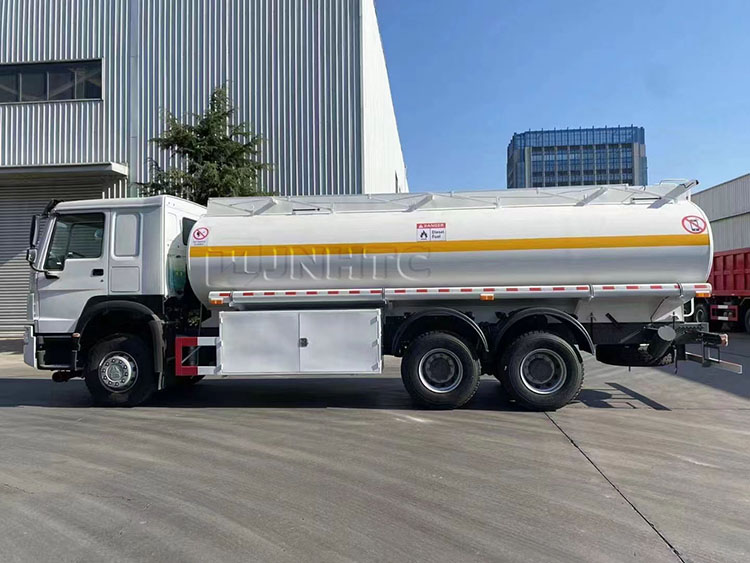

| Product Name | SINOTRUK HOWO 6X4 Fuel Tanker Truck |
| Chassis Model | ZZ1267N4641W |
| Driving Type | LHD (RHD is optional) |
| Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Engine | Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.69, Euro 2, 336 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R, with PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | HF9,1x9000 KGS Steering with a doubleT-cross section beam |
| Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 295/80R22.5, tubeless tyres with one spare tyre |
| Fuel Tank | 300L |
| Mixer Body | Tank Body: 20 Cubic Meters
Compartments:2
With refueling machine |
| Overall Dimension | 9000*2550*3360 mm |
