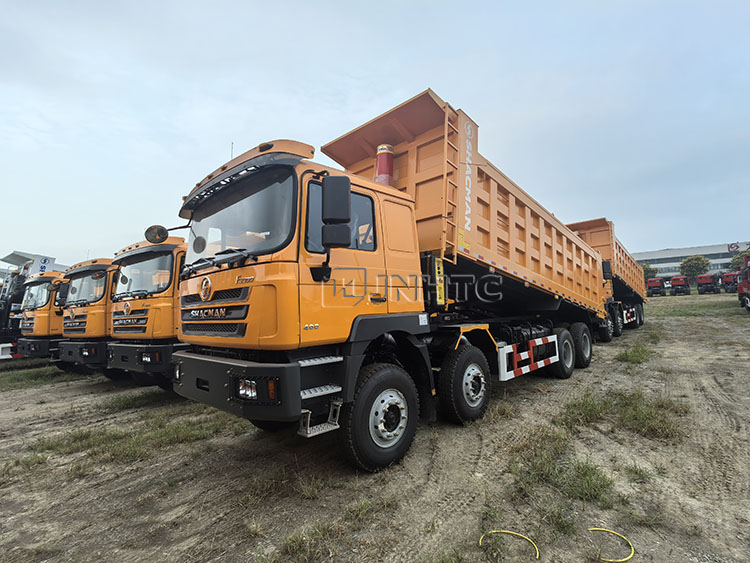

Shacman Dump Truck F3000 8x4 12 wheel LHD RHD 30ton Mining 50tons Tipper Truck

Product Categories

Jinan Heavy Truck Import & Export Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Shacman Dump Truck F3000 8x4 12 wheel LHD RHD 30ton Mining 50tons Tipper Truck
Brand: SHACMAN
Price: 30000 USD

Brand Name : SHACMAN

Model Number : SX3255DT384

Certification : ISO,CCC,GCC

Place of Origin : jinan

MOQ : 1 Unit

Price : FOB 30000-33000 USD Per Unit

Payment Terms : L/C, T/T

Supply Ability : 300 Units Per Month

Delivery Time : 30 Working Days

Packaging Details : Nude,wax before shipping.

Steering : Left

Engine Brand : WEICHAI

Capacity (load) : 30t

Horsepower : 235hp

Emission standard : Euro 2-Euro 6

Contact Now

Shacman Dump Truck F3000 8x4 12 wheel LHD RHD 30ton Mining 50tons Tipper Truck

Drive type		8×4
Complete kerb mass (kg)		11200
Max.total mass (kg)		25000
Max.speed (km/h)		70
Min.turning circle(m)		18
Min.ground clearance(mm)		314
Approach / Departure angle (°)		16/66
Max.gradeability(%)		40
Appearance dimensions (mm)	Max.length	8275
	Max.width	2490
	Max.heigh	3300
Front / Rear overhang		1525/1600
Wheel base(mm)		3800+1350
Track width(mm)		1939 / 1800
Engine		WP10.290
Rated Output (kw/ps)		228/290
Clutch		φ420mmSpring-loaded clutch damper
Transmission		FULLER 9JS135
Gear ratio		12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1.00 12.66R
Front axle		7.5tons
Rear axle		Shan Qi Steyr military reinforced axle 13tons
Steering		Integral inner circulation power sreering
Cab		D'LONG F2000, flat roof
Tire		12.00R20
Fuel consumption for 100km(50km/h) L		36
Fuel tank capacity (L)		300
Platform dimensions(mm)		560023001500 middle lift

Shacman Dump Truck F3000 8x4 12 wheel LHD RHD 30ton Mining 50tons Tipper Truck
